PEEK Extrusion Tube Pipe

  • PEEK Extrusion Tube Pipe
  • PEEK Extrusion Tube Pipe
  • PEEK Extrusion Tube Pipe
  • PEEK Extrusion Tube Pipe

PEEK Extrusion Tube Pipe

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT,CIP
    Min. Order: 10 Bag/Bags
    Delivery Time: 5 Days
    Packaging: Carton box,and wooden box
    Productivity: 100tons per year
    Brand: CHUNHUAN
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: IN STOCK
    Certificate: ISO9001,FDA,MSDS
    HS Code: 3920991000
    Port: Shanghai Port,Zhangjiagang Port,Ningbo Port

Product Description



PEEK extrusion tube

The PEEK tube manufactured with contunuous process solves the problem of height and the inside Shrinkage hole,which also can reduce the cost during the CNC process. It is widely used for manufacturing sealing ring,piston ring,wearing bush and value seat in oil & gas,semiconductor industries.We extruded the larget PEEK pipe in China(OD590mm)

NO

Dimension(mm)

Weight(g)

Notes

1

Θ1.6*θ0.13*1000

2.6

Unit(m)

2

Θ1.6*θ0.25*1000

2.5

Unit(m)

3

Θ1.6*θ0.5*1000

2.4

Unit(m)

4

Θ1.6*θ0.75*1000

2.0

Unit(m)

5

Θ1.6*θ1.0*1000

1.6

Unit(m)

6

Θ2.33*θ1.6*1000

2.9

Unit(m)

7

Θ2.8*θ2.5*1000

1.6

Unit(m)

8

Θ3.0*θ2.67*1000

1.9

Unit(m)

9

Θ3.2*θ1.0*1000

9.4

Unit(m)

10

Θ3.2*θ1.6*1000

7.8

Unit(m)

11

Θ5.0*θ2.5*1000

19.1

Squeeze

12

Θ5.0*θ4.5*1000

5.8

Squeeze

13

Θ7.5*θ4.0*1000

42.6

Squeeze

14

Θ10.2*θ8.0*1000

40.9

Squeeze

15

Θ12.0*θ4.0*1000

81.6

Squeeze

16

Θ12.45*θ8.88*1000

77.7

Squeeze

17

Θ29.0*θ18.0*1000

527.6

Squeeze

18

Θ39.0*θ31.0*1000

571.5

Squeeze

19

Θ80.0*θ30.0*1000

5612.8

Squeeze

20

Θ90.0*θ40.0*1000

6633.3

Squeeze

21

Θ100.0*θ50.0*1000

7653.8

Squeeze

22

Θ110.0*θ60.0*1000

8674.3

Squeeze

23

Θ130.0*θ60.0*1000

13572.7

Squeeze

24

Θ140.0*θ80.0*1000

13470.6

Squeeze

25

Θ160.0*θ90.0*1000

17858.8

Squeeze

26

Θ168.0*θ132.0*1000

11021.0

Squeeze

27

Θ180.0*θ110.0*1000

20716.2

Squeeze

28

Θ190.0*θ130.0*1000

19593.6

Squeeze

29

Θ190.0*θ140.0*1000

16838.3

Squeeze

30

Θ200.0*θ130.0*1000

23573.6

Squeeze

31

Θ220.0*θ150.0*1000

26431.0

Squeeze

32

Θ240.0*θ170.0*1000

29288.4

Squeeze

33

Θ257.0*θ230.0*1000

13418.6

Squeeze

34

Θ250.0*θ190.0*1000

26941.0

Squeeze

35

Θ260.0*θ210.0*1000

23981.8

Squeeze

36

Θ280.0*θ210.0*1000

35003.2

Squeeze

37

Θ280.0*θ230.0*1000

26022.0

Squeeze

38

Θ300.0*θ250.0*1000

28063.8

Squeeze

39

Θ320.0*θ300.0*1000

12654.2

Squeeze

40

Θ340.0*θ250.0*1000

54188.6

Squeeze

41

Θ360.0*θ280.0*1000

52249.6

Squeeze

42

Θ580.0*θ450.0*1000

136645.0

Squeeze




PEEK main material grade and typical properties

Item

Test Standard

Unit

PEEK450G

PEEK450GL30

PEEK450CA30

PEEK450FC30

100%PEEK

PEEK+30%Glass fiber

PEEK+30% Carbon fiber

PEEK+30%

(Carbon fiber+Graphite+PTFE)

Color

Natural or Black

Natural or Black

Black

Black

Density

ISO1183

g/cm3

1.3±0.01

1.5±0.01

1.4±0.01

1.43±0.01

Water Abs(25℃,24Hrs)

ISO 62

%

0.5

0.11

0.06

0.06

Mould shrinking percentage

3mm,170℃

Flow direction

%

1.2

0.4

0.1

0.3

Perpendicular to flow direction

%

1.5

0.8

0.5

0.5

Melting point

DSC

343

343

343

343

Distortion temperature

ASTM D648

163

315

315

293

Continuous using temperature

UL 74685

260

260

260

260

Coefficient of thermal expansion

ASTM D 696

10-5

2.2

1.5

2.2

4.7

Tensile strength(23℃)

ISO527-2/1B/50

Mpa

100

155

220

134

Tensile elongation(23℃)

ISO527-2/1B/50

%

34

2

1.8

2.2

Bending strength(23℃)

ISO 178

Mpa

163

212

298

186

Compressive strength(23℃)

ASTM D695

Mpa

118

215

240

150

Lzop impact strength(no gap)

ISO 180/U

KJ/m2

No break

51

46

32

Rockwell hardness

ASTM D785

103

107

102

99

Flammable level

UL 94

V-0@mm

1.5

1.5

1.5

0.75

Dielectric strength

IEC 248

KM/mm

18

19

Dielectric constant

IEC 250

3.2

3.2

Surface resistivity

1015

1015

3*106

5*106

Friction coefficient

µ

0.30-0.38

0.38-0.46

0.28

0.18

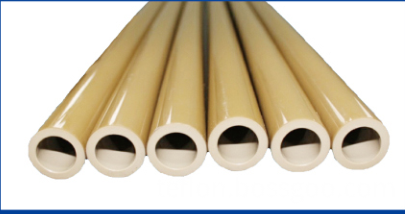

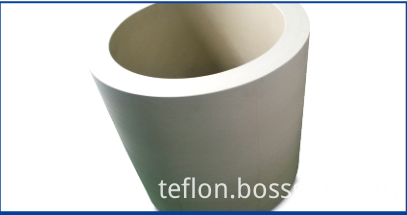

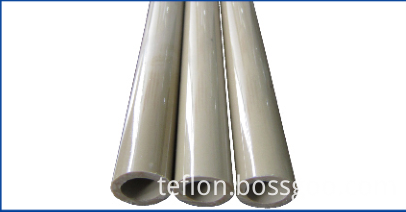

Product ShowPEEK450G Extrusion Tube 2PEEK450G Extrusion TubeOD590mm PEEK 450G Tube

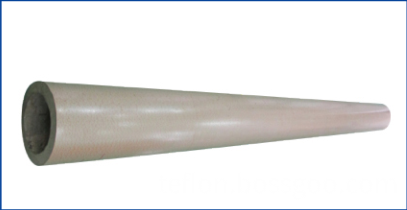

OD190MM PEEK450G Tube
